How to Autoscale Your WordPress Site on AWS

This comprehensive guide walks you through designing and implementing a production-ready WordPress infrastructure on AWS that scales automatically with your traffic while optimizing costs.

Infrastructure Design Principles

Before architecting any cloud infrastructure, evaluate these four critical questions to ensure your design meets business requirements:

• Scalability: Can the architecture handle expected traffic growth and sudden spikes?
• Availability: Does the design meet your Service Level Objectives (SLO) for uptime?
• Simplicity: Is the solution as simple as possible while meeting requirements?
• Cost Efficiency: Does the architecture optimize costs without sacrificing performance?

💡 Single Instance Reality Check: A single WordPress server on AWS EC2 provides 99.99% uptime, meaning approximately 11 hours of downtime per year. If this meets your business requirements, a simpler architecture may be more cost-effective.

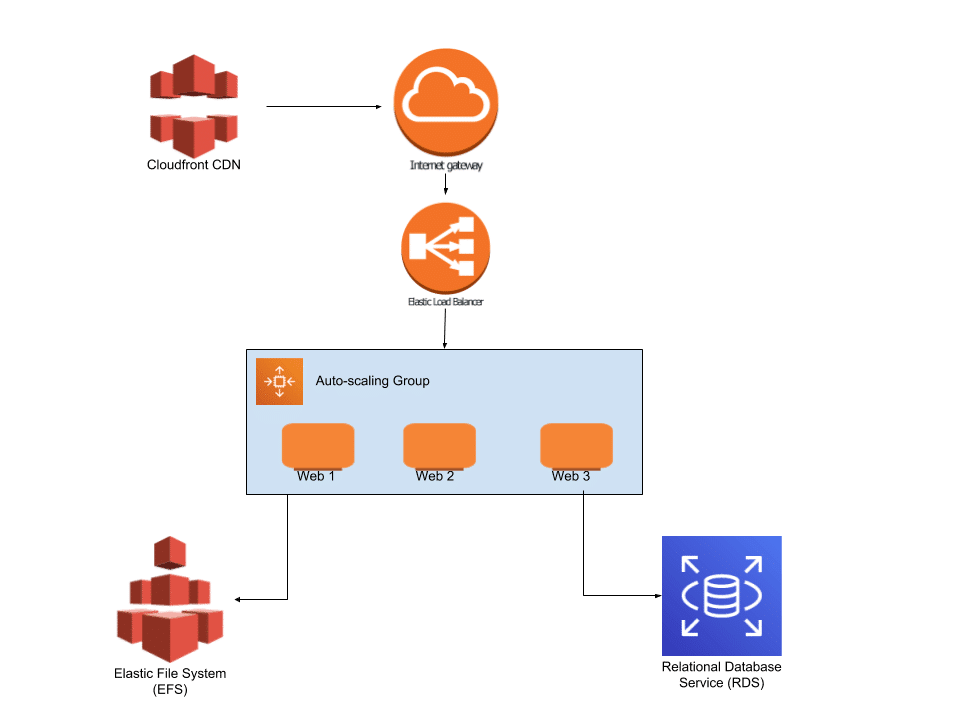

Scalable WordPress Architecture on AWS

Our recommended architecture eliminates single points of failure while providing automatic scaling and cost optimization through intelligent traffic distribution and caching strategies.

Architecture Components

• CloudFront CDN: Global content delivery network that caches static content closer to users, reducing server load and improving performance
• Application Load Balancer (ALB): Distributes incoming traffic across multiple EC2 instances with health checks
• Auto Scaling Group: Automatically launches or terminates EC2 instances based on traffic patterns and performance metrics
• Amazon RDS: Managed MySQL database service providing automated backups, maintenance, and high availability
• Amazon EFS: Shared file system for wp-content folder, accessible across all EC2 instances

Data Persistence Strategy

WordPress requires two types of persistent data: the application code and user-generated content. Our architecture handles these differently for optimal performance:

• WordPress Core Files: Baked into custom AMI (Amazon Machine Image) for fast instance launches
• wp-content Directory: Stored on Amazon EFS for shared access across all instances
• Database: Managed by Amazon RDS with automated backups and multi-AZ deployment

🔄 Alternative Storage Option: Consider Amazon S3 for wp-content storage instead of EFS. While requiring a WordPress plugin, S3 can reduce server load and costs for sites with heavy media usage. Learn more about CDN optimization.

Step-by-Step Configuration

Follow these sequential steps to build your autoscaling WordPress infrastructure. Each component builds upon the previous configuration, so maintain the order for successful deployment.

1. Create MySQL RDS Database Instance

Set up a managed MySQL database that will serve all WordPress instances:

# AWS CLI command to create RDS instance
aws rds create-db-instance \
    --db-instance-identifier wordpress-db \
    --db-instance-class db.t3.micro \
    --engine mysql \
    --master-username admin \
    --master-user-password YourSecurePassword123 \
    --allocated-storage 20 \
    --vpc-security-group-ids sg-xxxxxxxxx \
    --db-subnet-group-name wordpress-subnet-group

→ Complete RDS MySQL setup guide

2. Configure VPC and Subnets

Create dedicated subnets for your EC2 instances across multiple Availability Zones:

# Create subnet in first AZ
aws ec2 create-subnet \
    --vpc-id vpc-xxxxxxxxx \
    --cidr-block 10.0.1.0/24 \
    --availability-zone us-east-1a

# Create subnet in second AZ
aws ec2 create-subnet \
    --vpc-id vpc-xxxxxxxxx \
    --cidr-block 10.0.2.0/24 \
    --availability-zone us-east-1b

→ VPC and subnet configuration guide

3. Provision Amazon EFS File System

Set up shared storage for WordPress wp-content directory:

# Create EFS file system
aws efs create-file-system \
    --creation-token wordpress-efs-$(date +%s) \
    --performance-mode generalPurpose \
    --encrypted

# Create mount targets in each subnet
aws efs create-mount-target \
    --file-system-id fs-xxxxxxxxx \
    --subnet-id subnet-xxxxxxxxx \
    --security-groups sg-xxxxxxxxx

→ EFS setup and configuration guide

4. Build Custom WordPress AMI

Create a custom Amazon Machine Image with WordPress pre-configured:

# User data script for WordPress setup
#!/bin/bash
yum update -y
yum install -y httpd php php-mysqlnd
systemctl start httpd
systemctl enable httpd

# Download and configure WordPress
cd /var/www/html
wget https://wordpress.org/latest.tar.gz
tar -xzf latest.tar.gz
mv wordpress/* .
rm -rf wordpress latest.tar.gz

# Configure wp-config.php with RDS connection
cat > wp-config.php << 'EOF'
> /etc/fstab
mount -a

→ WordPress RDS connection tutorial

5. Configure Auto Scaling Group

Set up automatic scaling based on traffic patterns:

# Create launch template
aws ec2 create-launch-template \
    --launch-template-name wordpress-template \
    --launch-template-data '{
        "ImageId": "ami-xxxxxxxxx",
        "InstanceType": "t3.micro",
        "SecurityGroupIds": ["sg-xxxxxxxxx"],
        "IamInstanceProfile": {"Name": "wordpress-role"}
    }'

# Create auto scaling group
aws autoscaling create-auto-scaling-group \
    --auto-scaling-group-name wordpress-asg \
    --launch-template LaunchTemplateName=wordpress-template,Version=1 \
    --min-size 2 \
    --max-size 6 \
    --desired-capacity 2 \
    --vpc-zone-identifier "subnet-xxxxxxxxx,subnet-yyyyyyyyy"

→ Auto Scaling Group configuration guide

6. Configure Application Load Balancer

Set up load balancing and health checks:

# Create Application Load Balancer
aws elbv2 create-load-balancer \
    --name wordpress-alb \
    --subnets subnet-xxxxxxxxx subnet-yyyyyyyyy \
    --security-groups sg-xxxxxxxxx

# Attach ASG to load balancer
aws autoscaling attach-load-balancer-target-groups \
    --auto-scaling-group-name wordpress-asg \
    --target-group-arns arn:aws:elasticloadbalancing:us-east-1:123456789012:targetgroup/wordpress-tg/xxxxxxxxx

→ Load balancer integration guide

⚠️ Configuration Tip: For detailed step-by-step instructions with Elastic Beanstalk alternative, reference AWS’s official WordPress tutorial. This approach automates much of the infrastructure setup.

Cost Analysis and Optimization

Understanding the cost structure helps optimize your infrastructure spending. This breakdown assumes 1GB monthly data transfer, two t3.micro instances, 1GB database storage, and 1GB EFS storage.

Monthly Cost Breakdown

Total Monthly Cost: $35.83

Cost Optimization Strategies

• AWS Free Tier: New accounts can save approximately $20/month during the first year
• Reserved Instances: Commit to 1-3 year terms for up to 60% savings on EC2 costs
• Spot Instances: Use for development environments to reduce costs by up to 90%
• CloudWatch Monitoring: Set up billing alerts and automatically scale down during low traffic periods

💰 Cost Calculator: Use AWS Pricing Calculator to estimate costs for your specific usage patterns. Note: EFS pricing is available separately at AWS EFS Pricing.
